EXECUTIVE SUMMARY
Introduction
1. This is the 1st Monthly Environmental Monitoring and Audit (EM&A) Report prepared by the Environmental Team (ET), Cinotech Consultants Ltd., for Contract No. HY/2019/13 “Central Kowloon Route – Buildings, Electrical and Mechanical Works”. This report summarized the monitoring results and audit findings of the EM&A programme under the issued EP No. EP-457/2013/D, and in accordance with the EM&A programme in Central Tunnel (Ho Man Tin Area) during the reporting period from 1st January 2024 – 31st January 2024.
2. The major site activities undertaken in Central Tunnel (Ho Man Tin Area) in the reporting month included:
l
Super-structure works.
Environmental Monitoring Works
3. Environmental monitoring for the Project was performed in accordance with the EM&A Manual and the monitoring results were checked and reviewed. Joint weekly site inspections with the representative of ET, Engineer Representative and the Contractor for for Contract No. HY/2019/13 were conducted on 2, 9, 16, 23, 30 January 2024, whereas joint site inspection with the representative of IEC was conducted on 9 January 2024. The implementation of the environmental mitigation measures, Event and Action Plans and environmental complaint handling procedures were also checked.
4. A summary of the non-compliance (exceedance) during the reporting month (January 2024) and the investigation results and/or follow-up actions is provided below:
Air Quality Monitoring
l
No Action/Limit Level exceedance for 1-hour TSP was
recorded.
l
No Action/Limit Level exceedance for 24-hour TSP was
recorded.
Landscape and Visual Monitoring
l
No non-conformity for landscape and visual was
recorded.
Complaint Handling, Prosecution and Public Engagement
5. Summary of complaint/summons/prosecution in the reporting month is tabulated in Table I.
Table I Summary of
Complaint/Summons/Prosecution in the Reporting Month
|
Event |
Event Details |
Follow-up/ Remedial Actions |
Status/ Remarks |
||
|
Number |
Brief Description |
||||
|
Complaints Received |
0 |
- |
- |
- |
|
|
Notification of Summons and Prosecutions Received |
0 |
- |
- |
- |
|
Reporting Changes
6. There were no reporting changes during the reporting month.
Future Key Issues
7. The key works or activities will be anticipated in the coming two months are as follows:
l
Super-structure works.
1
INTRODUCTION
Background
1.1
Central Kowloon Route (CKR) is a 4.7km long dual 3-lane trunk road across
Central Kowloon linking Yau Ma Tei Interchange in West Kowloon and the road
network at Kai Tak Development and Kowloon Bay in East Kowloon. The underground
tunnel section will be about 3.9km long. In particular, an underground tunnel
of about 370m long in Kowloon Bay to the north of To Kwa Wan Typhoon Shelter
will be constructed.
1.2
The Environmental Impact Assessment Report for Central
Kowloon Route – Design and Construction (Register No.: AEIAR-171/2013) was
approved under the Environmental Impact Assessment Ordinance (EIAO) on 11 July
2013. An Environmental Permit (EP No.: EP- 457/2013) was issued on 9 August
2013. Variations of Environmental Permit (VEP) was subsequently applied and an
EP (EP No. EP-457/2013/C) was issued on 16 January 2017. The latest EP (EP No.
EP-457/2013/D) was issued by Environmental Protection Department (EPD) on 15
June 2021.
1.3
The construction of the CKR had been divided into
different sections. This Contract No. HY/2019/13 – Central Kowloon Route –
Buildings, Electrical and Mechanical Works (“The Project”) will include the
architectural, civil and structural construction works of Yau Ma Tei
Ventilation Building (YVB), Ho Man Tin Ventilation Building (HVB), Kai Tak
Ventilation Building (KVB) and Central Kowloon Route Administration Building
(ADB) for the CKR. The landscaping and electrical and
mechanical (E&M) works within the building sites will be involved as well.
1.4
Cinotech Consultants Limited was assigned as the
Environmental Team (ET) to undertake the EM&A works for the Project. The
construction of this Contract was commenced on 12th December 2020.
1.5
The construction work on the Ho Man Tin area under
Contract no. HY/2018/08 Central Kowloon Route – Central Tunnel was completed on
31 December 2023. Contract no. HY/2019/13 Central Kowloon Route – Buildings,
Electrical and Mechanical Works in Ho Man Tin area was then commenced on 1
January 2024 and took over the site of Ho Man Tin area.
1.6
The
baseline report for environmental monitoring was used the same as the
HY/2018/08 on the Ho Man Tin area. The baseline air quality and noise
monitoring were conducted by Acuity Sustainability Consulting Limited in
January 2018. The baseline monitoring results are presented in the Approved
Baseline Monitoring Reports in accordance with EP-457/2013/C Condition 3.3
under Contract no. HY/2014/09 Central Kowloon Route – Ho Man Tin Access Shaft.
1.7
This
is the 1st Monthly EM&A Report which summarises the impact
monitoring results and audit findings for the EM&A programme in Central
Tunnel (Ho Man Tin Area) during the reporting period from 1st January 2024 – 31st January 2024. The Central
Tunnel (Ho Man Tin Area) site layout plan for the Project is
shown in Figure 1.
Project Organizations
1.8
Different Parties with different levels of involvement
in the project organization include:
l
Project Proponent – Highways Department (HyD)
l
Engineer Representative (ER) – Arup – Mott MacDonald
Joint Venture (AMMJV)
l
Environmental Team (ET) – Cinotech Consultants Limited
(Cinotech)
l
Independent Environmental Checker (IEC) –
Environmental Resources Management – Hong Kong Limited (ERM)
l
Contractor – Gammon Construction Limited (GCL)
1.9
The key contacts of the Project are shown in Table
1.1.
Table 1.1 Key Project
Contacts
|
Party |
Role |
Contact Person |
Phone No. |
|
AMMJV |
Engineer Representative |
Mr. Tommy Wong |
3695 0419 |
|
Cinotech |
Environmental Team |
Ms. Betty Choi |
2151 2072 |
|
ERM |
Independent Environmental Checker |
Ms. Mandy To |
2271 3113 |
|
GCL |
Contractor |
Mr. Sampson Lo |
9752 9118 |
1.10 The Organizational Structure for
Environmental Management is shown in Figure 2.
Construction Activities undertaken during the Reporting Month
1.11
The construction programme is presented in Appendix
M.
1.12
The major site activities undertaken in the reporting
month included:
l
Super-structure works.
Summary of EM&A Requirements
1.13
The EM&A programme requires air quality
monitoring, landscape
and visual monitoring and environmental site audit. The
EM&A requirements for each parameter are described in the following
sections, including:
l
Environmental requirements and mitigation measures, as
recommended in the EM&A Manual under the EP.
1.14
The
advice on the implementation status of environmental protection and pollution
control/mitigation measures is summarized in Section 6 of this report.
Statues of Environmental Licensing and Permitting
1.15
All permits/licenses
obtained for the Project are summarized in Table 1.2.
Table 1.2 Summary of Environmental Licensing and Permit Status
|
Permit / License No. |
Valid Period |
Status |
|
|
From |
To |
||
|
Environmental Permit (EP) |
|||
|
EP-457/2013/D |
15 Jun 2021 |
N/A |
Valid |
|
Notification of Construction Works under Air Pollution Control Ordinance (APCO) |
|||
|
457345 |
19 Jun 2020 |
End of Project |
Valid |
|
Billing Account for Construction Waste Disposal |
|||
|
7037679 |
26 Jun 2020 |
N/A |
Valid |
|
Registration of Chemical Waste Producer – Ho Man Tin |
|||
|
5213-236-G2347-61 |
28 Nov 2023 |
N/A |
Valid |
|
Wastewater Discharge Licence - Ho Man Tin |
|||
|
498618 |
N/A |
N/A |
Under payment process |
|
Construction Noise Permit - Ho Man Tin |
|||
|
GW-RE0016-24 |
14 Jan 2024 |
13 Apr 2024 |
Valid |
2
AIR Quality
Monitoring Requirements
2.1
According to EM&A Manual under the EP, 1-hour and
24-hour TSP monitoring were conducted to monitor the air quality for this
Project. For regular impact monitoring, a sampling frequency of at least once
in every six days at all of the monitoring stations for 24-hour TSP monitoring.
For 1-hour TSP monitoring, the sampling frequency of at least three times in
every six days shall be undertaken when the highest dust impact occurs. Appendix
A shows the established Action/Limit Levels for the environmental monitoring
works.
Monitoring Locations
2.2
Only one designated monitoring station was selected
for 1-hour and 24-hour TSP impact dust monitoring programme. Both dust
monitoring was conducted at the designated monitoring station (M-A3).
2.3
Table 2.1 describes the air quality
monitoring locations, which are also depicted in Figure 3.
Table 2.1
Locations for Air Quality Monitoring
|
Monitoring Stations |
Locations |
Location of Measurement |
|
M-A3 |
S.K.H. Tsoi Kung Po Secondary School |
Rooftop (about 3/F) Area |
Monitoring Equipment
2.4
Table 2.2 summarizes the equipment used in
the impact air monitoring programme. Copies of calibration certificates are
attached in Appendix B.
Table 2.2
Air Quality Monitoring Equipment
|
Equipment |
Model and Make |
Quantity |
|
Calibrator |
TISCH TE-5025A |
1 |
|
1-hour TSP Dust Meter |
Dust Monitor System OC-9200 |
1 |
|
High Volume Sampler |
TE-5170 c/w of TSP sampling inlet |
1 |
|
Wind Anemometer |
C-OC-9200-wind |
1 |
Monitoring Parameters, Frequency and
Duration
2.5
Table 2.3 summarizes the monitoring
parameters and frequencies of impact dust monitoring for the whole construction
period. The air quality monitoring schedule for the reporting month is shown in
Appendix D.
Table 2.3
Impact Dust Monitoring Parameters, Frequency and Duration
|
Parameters |
Frequency |
|
1-hour TSP |
Three times / 6 days |
|
24-hour TSP |
Once / 6 days |
Monitoring Methodology and QA/QC
Procedure
1-hour TSP
Monitoring
Measuring Procedures
2.6
The measuring procedures of the 1-hour dust meters were
in accordance with the Manufacturer’s Instruction Manual as follows: (OC-9200
Dust Monitoring System)
l
The 1-hour dust meter is placed at least 1.3 meters
above ground.
l
Set POWER to “ON” and make sure that the battery level
was not flash or in low level.
l
Allow the instrument to stand for about 3 minutes and
then the cap of the air sampling inlet has been released.
l
Push the knob at MEASURE position.
l
Set time/mode setting to [BG] by pushing the time
setting switch. Then, start the background measurement by pushing the
start/stop switch once. It will take 6 sec. to complete the background
measurement.
l
Push the time setting switch to change the time
setting display to [MANUAL] at the bottom left of the liquid crystal
display.
l
Finally, push the start/stop switch to stop the
measuring after 1 hour sampling.
l
Information such as sampling date, time, count value
and site condition were recorded during the monitoring period.
Maintenance/Calibration
2.7
The following maintenance/calibration was required for
the direct dust meters:
l
Check and calibrate the meter by HVS to check the
validity and accuracy of the results measured by direct reading method at
2-month intervals throughout all stages of the air quality monitoring.
2.8
24-hour TSP
Monitoring
Instrumentation
2.9
High volume (HVS) samplers (Model TE-5170), completed
with appropriate sampling inlets, were employed for 24-hour TSP
monitoring. The sampler was composed of a motor, a filter holder, a flow
controller and a sampling inlet and its performance specification complied with
that required by USEPA Standard Title 40, Code of Federation Regulations
Chapter 1 (Part 50). Moreover, the HVS also met all the requirements in section
2.5 of the updated EM&A Manual.
2.10
The positioning of the HVS samplers are as follows:
l
A horizontal platform was provided with appropriate
support to secure the samplers against gusty wind.
l
No two samplers were placed less than 2 meters apart.
l
The distance between the sampler and an obstacle, such
as buildings, was at least twice the height that the obstacle protrudes above
the sampler.
l
A minimum of 2 meters of separation from walls,
parapets and penthouses was required for rooftop samples.
l
A minimum of 2 meters separation from any supporting
structure, measured horizontally was required.
l
No furnaces or incineration flues were nearby.
l
Airflow around the sampler was unrestricted.
l
The sampler was more than 20 meters from the drip
line.
l
Any wire fence and gate, to protect the sampler,
should not cause any obstruction during monitoring.
Operating/analytical procedures for the operation of
HVS
2.11
Operating/analytical procedures for the air quality
monitoring are highlighted as follows:
l
Prior to the commencement of the dust sampling, the flow
rate of the high volume sampler was properly set (between 1.1 m3/min. and 1.4
m3/min.) in accordance with the manufacturer’s instruction to within the range
recommended in USEPA Standard Title 40, CFR Part 50.
l
For TSP sampling, fiberglass filters have a collection
efficiency of > 99% for particles of 0.3μm diameter were used.
l
The power supply was checked to ensure the sampler
worked properly. On sampling, the sampler was operated for 5 minutes to
establish thermal equilibrium before placing any filter media at the designated
air monitoring station.
l
The filter holding frame was then removed by loosening
the four nuts and a weighted and conditioned filter was carefully centred with
the stamped number upwards, on a supporting screen.
l
The filter was aligned on the screen so that the
gasket formed an airtight seal on the outer edges of the filter. Then the
filter holding frame was tightened to the filter holder with swing bolts. The
applied pressure should be sufficient to avoid air leakage at the edges.
l
The shelter lid was closed and secured with the
aluminium strip.
l
The timer was then programmed. Information was
recorded on the record sheet, which included the starting time, the weather
condition and the filter number (the initial weight of the filter paper can be
found by using the filter number).
l
After sampling, the filter was removed and sent to the
HOKLAS laboratory (High Precision Chemical Testing Ltd.) for weighing.
The elapsed time was also recorded.
l
Before weighing, all filters were equilibrated in a
conditioning environment for 24 hours.
l
The conditioning environment temperature should be
between 25°C and 30°C and not vary by more than ±3°C; the relative humidity
(RH) should be < 50% and not vary by more than ±5%. A convenient working RH
is 40%.
Maintenance/Calibration
2.12
The following maintenance/calibration was required for
the HVS:
l
The high-volume motors and their accessories were
properly maintained. Appropriate maintenance such as routine motor brushes
replacement and electrical wiring checking were made to ensure that the
equipment and necessary power supply are in good working condition.
l
High volume samplers were calibrated at bi-monthly
intervals using TE-5025A Calibration Kit through\hout all stages of the air
quality monitoring.
Results and Observations
2.13
All 1-hour TSP monitoring was conducted as scheduled
in the reporting month. As the taking over from Contract no. HY/2018/08 CKR –
CT, the monitoring date on 2 January 2024 is also added to the schedule as the
revised schedule shown in Appendix D.
2.14
No Action/Limit Level exceedance of the 1-hour TSP
monitoring was recorded.
2.15
All 24-hour TSP monitoring was conducted as scheduled
in the reporting month.
2.16
No Action/Limit Level exceedance of the 24-hour TSP
monitoring was recorded.
2.17
The weather information for the reporting month is
summarized in Appendix C.
2.18
The monitoring data and graphical presentations of
1-hour and 24-hour TSP monitoring results are shown in Appendix E and
Appendix F respectively.
2.19
No exceedance was recorded for the air quality
monitoring. The summary of exceedance record in reporting month is shown in Appendix
H.
2.20
Site
audits were carried out on a weekly basis to monitor and audit the timely
implementation of air quality mitigation measures within the site boundaries of
this Project. The summary of site audits is shown in Table 6.1 of
this report.
2.21
According to our field observations during the
monitoring, the major dust source identified at the designated air quality
monitoring stations are road traffic dust, exposed site area and open
stockpiles, excavation works and site vehicle movements.
3
noise
Monitoring Requirements
3.1
According to EM&A Manuals under the EP,
construction noise monitoring was conducted to monitor the construction noise
arising from the construction activities. The regular monitoring frequency for
each monitoring station shall be on a weekly basis and conduct one set of
measurements between 0700 and 1900 hours on normal weekdays. Appendix A
shows the established Action and Limit Levels for the environmental monitoring
works.
Monitoring Locations
3.2
Only one designated monitoring station was selected
for the noise monitoring programme. Noise monitoring was conducted at the
designated monitoring station (M-N3).
3.3
Table 3.1 describes the air quality
monitoring locations, which are also depicted in Figure 3.
Table 3.1
Noise Monitoring Stations
|
Monitoring Stations |
Locations |
Location of Measurement |
|
M-N3 |
S.K.H. Tsoi Kung Po Secondary School |
Rooftop (about 3/F) Area |
Monitoring Equipment
3.4
Table 3.2 summarizes the noise monitoring equipment.
Copies of calibration certificates are provided in Appendix B.
Table 3.2
Noise Monitoring Equipment
|
Equipment |
Model and Make |
Quantity |
|
Calibrator |
SOUNDTEK ST-120 |
1 |
|
Integrating Sound Level Meter |
BSW Atech BSWA 308 & SVAN 979 |
1 |
Monitoring Parameters, Frequency and
Duration
3.5
Table 3.3 summarizes the monitoring
parameters, frequency and total duration of monitoring. The noise
monitoring schedule is shown in Appendix D.
Table 3.3
Noise Monitoring Parameters, Frequency and Duration
|
Monitoring Stations |
Parameter |
Period |
Frequency |
Measurement |
|
M-N3 |
L10(30 min.) dB(A) L90(30 min.) dB(A) Leq(30 min.) dB(A) |
0700-1900 hrs on normal weekdays |
Once per week |
Façade |
Monitoring Methodology and QA/QC
Procedure
3.6
The procedures for noise monitoring were as follows:
l
The Sound Level Meter was set on a tripod at a height
of 1.2 m above the ground.
l
The battery condition was checked to ensure the
correct functioning of the meter.
l
Parameters such as frequency weighting, the time
weighting and the measurement time were set as follows:
—
frequency weighting
: A
—
time weighting
: Fast
—
time measurement
: 30 minutes
l
Prior to and after each noise measurement, the meter
was calibrated using a Calibrator for 94.0 dB at 1000 Hz. If the
difference in the calibration level before and after measurement was more than
1.0 dB, the measurement would be considered invalid and repeat of noise
measurement would be required after re-calibration or repair of the equipment.
l
The wind speed was frequently checked with the
portable wind meter.
l
At the end of the monitoring period, the Leq,
L90 and L10 were recorded. In addition, site conditions
and noise sources were recorded on a standard record sheet.
l
Noise measurement was paused temporarily during
periods of high intrusive noise if possible and observation was recorded when
intrusive noise was not avoided.
l
Noise monitoring was cancelled in the presence of fog,
rain, and wind with a steady speed exceeding 5 m/s, or wind with gusts
exceeding 10 m/s.
Maintenance and Calibration
3.7
The microphone head of the sound level meter and
calibrator were cleaned with a soft cloth at quarterly intervals.
3.8
The sound level meter and calibrator were checked and
calibrated at yearly intervals.
3.9
Immediately prior to and following each noise
measurement the accuracy of the sound level meter shall be checked using an
acoustic calibrator generating a known sound pressure level at a known
frequency. Measurements may be accepted as valid only if the calibration levels
from before and after the noise measurement agree to within 1.0 dB.
Results and Observations
3.10 All construction noise monitoring
was conducted as scheduled in the reporting month.
3.11
The Baseline Noise Level and the Noise Limit Level at
the designated noise monitoring station are presented in Table 3.4.
Table 3.4 Baseline Noise Level and Noise Limit Level for Monitoring
Stations
|
Monitoring Stations |
Baseline Noise Level, dB (A) |
Noise Limit Level, dB (A) |
|
M-N3 |
67.7(1) (at 0700 – 1900 hrs on normal weekdays) |
70(*) (at 0700 – 1900 hrs on normal weekdays) |
(*) Noise Limit Level is 65 dB(A) during school examination periods.
Note (1): The noise level due to the construction work (CNL) was calculated by the following formula:
CNL = 10 log (10MNL/10 – 10BNL/10)
Remarks: MNL = Measured Noise Level, BNL = Baseline Noise Level
3.12
No Action/Limit Level exceedance was recorded. The
summary of exceedance record in reporting month is shown in Appendix H.
3.13
Noise monitoring results and graphical presentations
are shown in Appendix G.
3.14
Site audits were carried out on a weekly basis to
monitor and audit the timely implementation of construction noise mitigation
measures within the site boundaries of this Project. The summary of site
audits are shown in Table 6.1 of this report.
3.15
According to our field observations during the
monitoring, the major noise sources identified at the designated noise
monitoring stations are road traffic noise, site vehicle movement, excavation
works and daily school activities.
4
waste management
Monitoring Requirements
4.1
Waste generated from this Project includes inert
construction and demolition (C&D) materials and non-inert C&D
materials. Inert C&D waste includes soil, broken rock, broken concrete and
building debris, while non-inert C&D materials are made up of C&D waste
which cannot be reused or recycled and has to be disposed of at the designated
landfill sites.
Results and Observations
4.2
The quantities of different types of waste generated
in the reporting month are summarised in Table . Details of the amount
of wastes generated by the major site activities of this Project during the
reporting month is shown in Appendix B.
Table 4.1 Quantities of Waste
Generated from the Project
|
Quantity |
|||||||
|
|
Inert C&D Materials |
Non-inert C&D Materials |
|||||
|
Reporting Period |
Total Quantity Generated (in '000m3) |
Disposed as Public Fill (in '000m3) |
Others, e.g. general refuse (in '000m3) |
Metals (in '000kg) |
Paper/cardboard Packaging (in '000kg) |
Plastics (in '000kg) |
Chemical waste (in '000kg) |
|
January 2024 |
0 |
0 |
0.127 |
0 |
0 |
0 |
0 |
4.3
Site audits were carried out on a weekly basis to
monitor and audit to ensure that proper storage, transportation, and disposal practices
of waste materials generated during construction activities, such as
construction and demolition (C&D) materials and general refuse are being
implemented. The summary of site audits is shown in Table of this
report. The implementation status of the waste/chemical management
measures in the reporting period are summarized in Appendix C.
5
landscape and
visual
Monitoring Requirements
5.1
According to the EM&A Manual, site audits would be
undertaken during the construction phase of the Project to check that the
proposed landscape and visual mitigation measures are properly implemented and
maintained as per their intended objectives. Site inspections of the implementation
of landscape and visual mitigation measures would be undertaken at least once
every two weeks during the construction period.
Results and Observations
5.2
Bi-weekly inspection of the implementation of
landscape and visual mitigation measures within the site boundaries of this
Project was conducted on 2, 16 & 30 January 2024. The implementation status
of the landscape and visual mitigation measures in the reporting period are
summarized in Appendix J. The summary of observations and
recommendations made for landscape and visual mitigation measures during site
audits are shown in Table of this report.
5.3
No non-compliance of the landscape and visual impact
was recorded in the reporting month.
5.4
Should non-compliance of the landscape and visual
impact occur, action in accordance with the action plan presented in Appendix
I shall be performed.
6
environmental audit
Site Audits
6.1
Site audits were carried out on a weekly basis to
monitor the timely implementation of proper environmental management practices
and mitigation measures in the Project site.
6.2
Site audits for Contract No. HY/2019/13 were conducted
on 2, 9, 16, 23, 30 January 2024 in the reporting month. Joint site
inspection with the representative of IEC was conducted on 9 January 2024. No
non-compliance was observed during the site audit.
Implementation Status of Environmental Mitigation
Measures
6.3
According to Environmental Permit, the approved EIA
Report (Register No.: AEIAR-171/2013), and the EM&A Manual of the Project,
the mitigation measures detailed in the documents are recommended to be
implemented during the construction phase. An Environmental Mitigation
Implementation Schedule (EMIS) is provided in Appendix J.
6.4
The ET weekly site inspections were carried out during
the reporting month and the observations and follow-up actions in Central
Tunnel Area are summarized in Table .
Table 6.1 Observations and Recommendations of Site Inspections
|
Parameters |
Date |
Observations |
Follow-up Actions |
|
Water Quality |
N/A |
No environmental deficiency was identified in the reporting period. |
N/A |
|
Air Quality |
N/A |
No environmental deficiency was identified in the reporting period. |
N/A |
|
Noise |
N/A |
No environmental deficiency was identified in the reporting period. |
N/A |
|
Waste / Chemical Management |
N/A |
No environmental deficiency was identified in the reporting period. |
N/A |
|
Land Contamination |
N/A |
No environmental deficiency was identified in the reporting period. |
N/A |
|
Landscape and Visual |
N/A |
No environmental deficiency was identified in the reporting period. |
N/A |
|
Permits /Licences |
N/A |
No environmental deficiency was identified in the reporting period. |
N/A |
Implementation Status of Event and
Action Plans
6.5
The Event Action Plans for air quality, noise and
landscape and visual are presented in Appendix I.
Air Quality Monitoring
l
No Action/Limit Level exceedance for 1-hour TSP was
recorded.
l
No Action/Limit Level exceedance for 24-hour TSP was
recorded.
Noise Monitoring
l
No Action/Limit Level exceedance for noise was
recorded.
Landscape and Visual Monitoring
l
No non-conformity for landscape and visual was
recorded.
Summary of Complaint, Warning,
Notification of any Summons and Successful Prosecution
6.6
No
environmental complaint and no warning, notifications of summons and successful
prosecutions was received in the reporting month. The summary of environmental
complaint, warning, summon and notification of successful prosecution for the
Project is presented in Appendix K.
6.7
Status of required submission under EP-457/2013/D
during the reporting period are summarized in Table .
Table 6.2 Status of Required Submission under Environmental Permit
|
EP Condition (EP-457/2013/D) |
Submission |
Submission Date |
|
Condition 3.4 |
N/A |
N/A |
7
future Key issues
7.1
Major site activities undertaken for the coming two
months include:
l
Super-structure works
7.2
Key environmental issues in the coming two months
include:
l
Stockpile accumulation on-site;
l
Water spraying for dust generating activities and on
haul road;
l
Wastewater and runoff discharge from site;
l
Coverage of open manholes to avoid dirty runoff to
drainage system;
l
Noise from operation of the equipment, especially for
excavation works and machinery onsite;
l
Accumulation of general refuse and construction waste
on-site;
l
Proper storage of construction materials on-site; and
l
Storage of chemicals/fuel and chemical waste/waste oil
on-site.
Monitoring Schedule for Next Month
7.3
The tentative environmental monitoring schedules for
next month are shown in Appendix D.
Conclusions and recommendations
Conclusions
8.1

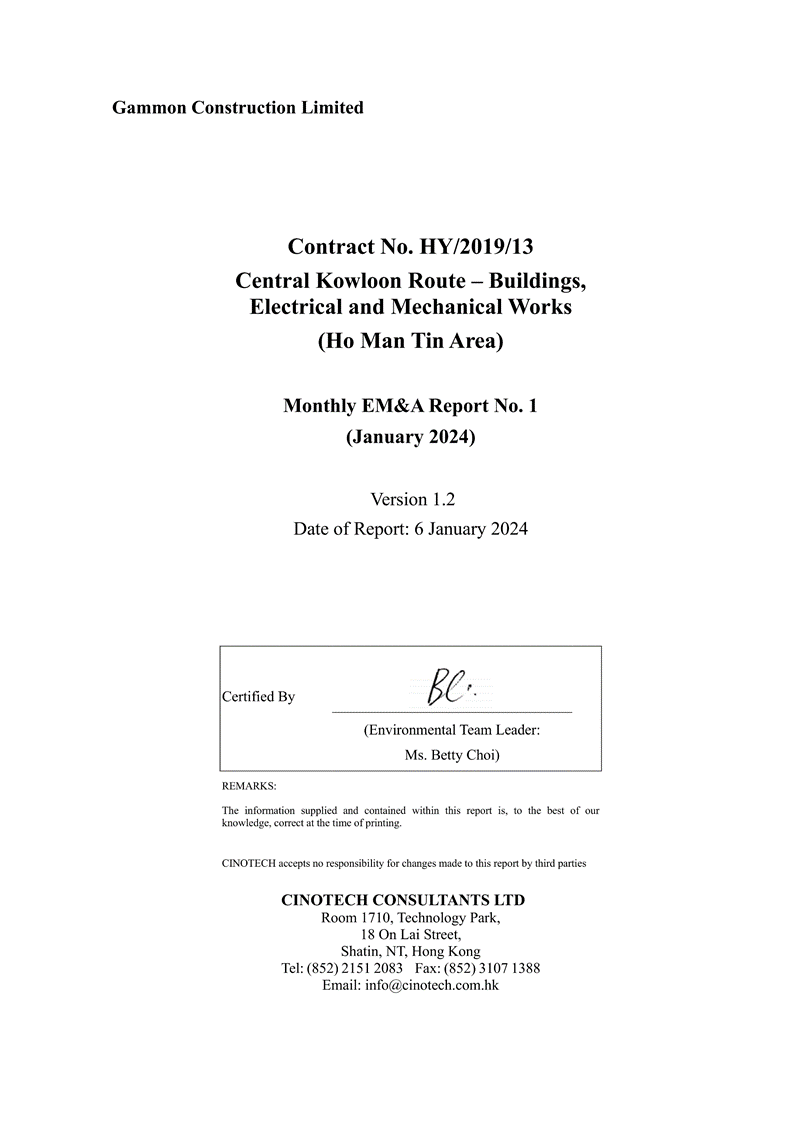

This is the 1st Monthly
EM&A Report which presents the EM&A works undertaken in Ho Man Tin area
during the reporting month from 1st January
2024 – 31st January 2024 in accordance with the EM&A Manual
and the requirements under the EP.
Air Quality Monitoring
8.2
All 1-hr TSP monitoring was conducted as scheduled in
the reporting month. As the taking over from Contract no. HY/2018/08 CKR – CT,
the monitoring date on 2 January 2024 is also added to the schedule as the
revised schedule shown in Appendix D.
8.3
No Action/Limit Level exceedance was recorded for all
1-hour TSP monitoring in the reporting month.
8.4
All 24-hr TSP monitoring was conducted as scheduled in
the reporting month.
8.5
No Action/Limit Level exceedance was recorded for all
24-hour TSP monitoring in the reporting month.
Construction Noise Monitoring
8.6
All construction noise monitoring was conducted as scheduled
in the reporting month.
8.7
No Action/Limit Level exceedance was recorded.
Landscape and visual
8.8
No non-compliance was recorded in the reporting month.
Site Audit
8.9
5 ET
joint weekly environmental site inspections were conducted in the reporting
month. Joint weekly site inspections with the representative of ET, Engineer
Representative and the Contractor for Contract No. HY/2019/13 were conducted on
2, 9, 16, 23, 30 January 2024, whereas joint site inspection with the
representative of IEC was conducted on 9 January 2024. All environmental
deficiencies observed during site inspections were rectified by the Contractor.
Complaint, Notification of Summons and Successful
Prosecution
8.10
No environmental complaint and no notifications of
summons and successful prosecutions were received in the reporting month.
I. Introduction

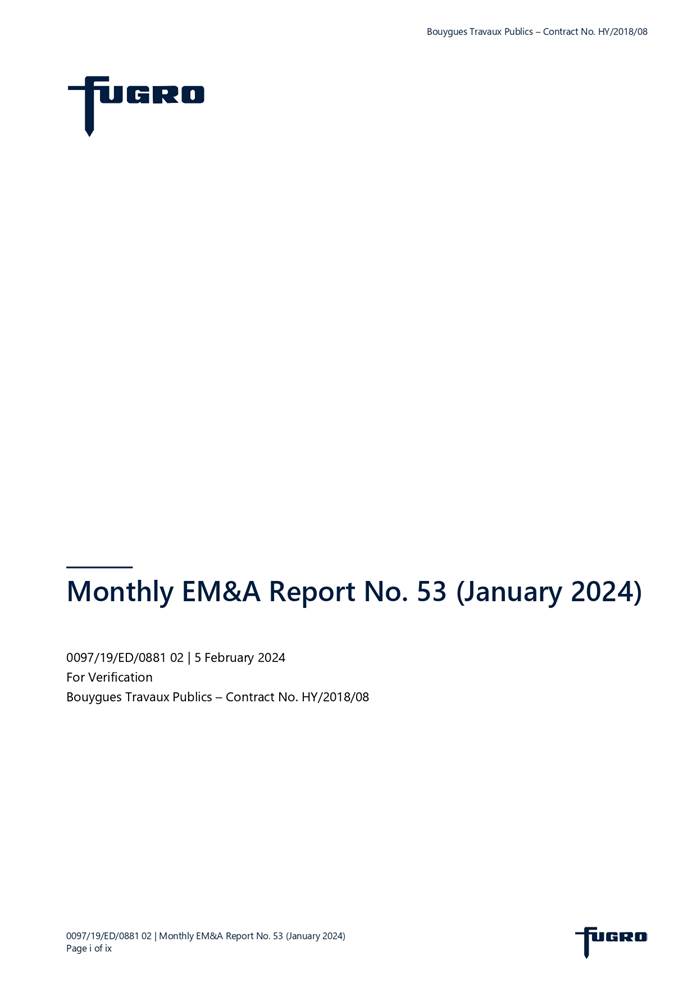

This is the 53rd Monthly EM&A Report prepared by Fugro Technical Services Limited for the Contract No. HY/2018/08 Central Kowloon Route – Central Tunnel. The Contract No. HY/2018/08 commenced on 19 September 2019. This report summarized the monitoring results and audits findings of the EM&A programme under the issued EP (EP No.: EP-457/2013/D) and in accordance with the EM&A Manual during the reporting period from 01/01/2024 to 31/01/2024.
II. Summary of Main Works Undertaken and Key Measures Implemented
The main construction works carried out in the reporting period were as follow:
Ho Man Tin1
· Underbreak scaling and smoothing works;
· Invert, lining and OHVD construction;
· CLP Room demolition and slope reinstatement.
Yau Ma Tei
· Underbreak scaling and smoothing works;
· Plant and material lifting;
· Invert, lining and OHVD construction;
· Mucking out from tunnel;
· Road slab and invert slab construction;
· Waterproofing work.
Ma Tau Kok
· Underbreak scaling and smoothing works;
· Plant and material lifting;
· Invert, lining and OHVD construction;
· Mucking out from tunnel;
· Road slab and invert slab construction;
· Waterproofing work;
· Cut and cover construction
Kai Tak Barging Point
· Material storage.
Sheung Lok Street
· Concreting.
Ma Hang Chung Road
· Concreting.
Note:
1 Construction Work at Ho Man Tin site surface was substantially completed. The site had been handed over to Contract No. HY/2019/13 on 30 December 2023.
III. Summary of Exceedances, Investigation and Follow-up
The last impact monitoring conducted by ET of Contract HY/2018/08 at M-A3/ M-N3 was on 27 December 2023. Impact monitoring at M-A3/ M-N3 was subsequently conducted by Environmental Team of Contract HY/2019/13 since January 2024. The monitoring results at M-A3 and M-N3 are presented in the monthly EM&A Report prepared by Contract No. HY/2019/13.
No Action and Limit Level exceedance was recorded for construction dust monitoring in the reporting month.
One (1) Action Level exceedance was recorded for construction noise due to the noise-related complaints received in the reporting month. No Limit Level exceedance was recorded for construction noise monitoring in the reporting month.
IV. Complaint Handling, Prosecution and Public Engagement.
All complaints received in the last reporting month were finalized.
One (1) noise-related complaint (i.e. 4th January 2024) and one (1) waste management-related complaint (i.e. 15th January 2024) was received in the reporting month.
The complaint cases in January 2024 are summarized in Table I.
Table I Environmental Complaints Log
|
Complaint Log No. |
Date of Complaint |
Received From |
Nature of Complaint |
Status |
|
4th December 2023 |
1823 |
Blocked gullies |
Investigation report was finalized on 1st February 2024. |
|
|
EC182_CKRCT20240103_759 |
3rd January 2024 |
1823 |
Daytime Noise |
Investigation report was finalized on 1st February 2024. |
|
EC183_CKRCT20240115_763 |
15th January 2024 |
1823 |
Concrete spillage |
Investigation report was finalized on 1st February 2024. |
No notification of summons and prosecutions were received in the reporting period.
No public engagement activities were conducted in the reporting period.
V. Reporting Change
Impact monitoring at M-A3/ M-N3 has been conducted by Environmental Team (HY/2019/13) since January 2024.
VI. Future Key Issues
The main works will be anticipated in the next reporting period are as follow:
Ho Man Tin1
· Underbreak scaling and smoothing works;
· Invert, lining and OHVD construction;
· Road improvement and re-surfacing work.
Yau Ma Tei
· Underbreak scaling and smoothing works;
· Plant and material lifting;
· Invert, lining and OHVD construction;
· Mucking out from tunnel;
· Road slab and invert slab construction;
· Waterproofing work;
· Extension of Noise Enclosure.
Ma Tau Kok
· Underbreak scaling and smoothing works;
· Plant and material lifting;
· Invert, lining and OHVD construction;
· Mucking out from tunnel;
· Road slab and invert slab construction;
· Waterproofing work;
· Cut and cover construction
Kai Tak Barging Point
· Material storage.
Sheung Lok Street
· Concreting.
Ma Hang Chung Road
· Concreting.
Note:
1 Construction Work at Ho Man Tin site surface was substantially completed. The site had been handed over to Contract No. HY/2019/13 on 30 December 2023.
The recommended mitigation measures corresponding to the main works in the next reporting period are listed as follow:
· Good relationship shall be maintained with the nearby sensitive receivers/ stakeholders which may be affected by the construction works such as providing better/ more detail information of the work nature and inform in advance of the works to the nearby residents;
· Any excavated, stockpile of dusty material or load of dusty materials on a vehicle leaving a construction site should be covered entirely by impervious sheeting;
· All construction plants / machineries should be checked / serviced on a regular basis during the courses of construction to minimize the emission of noise generation and eliminate dark smoke emission;
· All C&D materials generated should be transported and stored at temporary storage area. Suitable materials should be sorted for reuse on-site;
· Every vehicle shall be cleaned thorough at the designated wheel washing area onsite;
· Wastewater generated from drilling shall be properly collected for reuse or treated by wastewater treatment facilities before discharge;
· Provision of drip trays for equipment likely cause spillage of chemical / fuel, and provide routine maintenance;
· Erecting temporary noise barrier for noisy Powered Mechanical Equipment (PME) and deployment of Quality Powered Mechanical Equipment (QPME) as many as practicable;
· Conditions in the Environmental Permit and License should be followed;
· All recommended mitigation measures specified in the approved EIA Report and EM&A Manual shall be implemented;
· All vehicles should be cleaned before leaving the construction site to ensure no muddy deposited by them on roads.
The following EP submissions were submitted during the reporting month:
Table II Status of Required Submission under Environmental Permit
|
EP Condition |
Submission |
Submission Date |
|
3.4 |
Monthly EM&A Report (December 2023) |
11 January 2024 |
Contents
1.3 Construction Programme and Activities
1.4 Works undertaken during the month
1.5 Status of Environmental Licences, Notification and Permits
2 ENVIRONMENTAL MONITORING REQUIREMENTS
2.1 Construction Dust and Noise Monitoring Locations
2.2 Construction Dust Monitoring
2.3 Construction Noise Monitoring
3 ENVIRONMENTAL MONITORING RESULTS
3.1 Construction Dust Monitoring
3.2 Construction Noise Monitoring
5 ENVIRONMENTAL COMPLAINT AND NON-COMPLIANCE
5.1 Complaint Handling, Prosecution and Public Engagement
5.2 Summary of Environmental Non-Compliance
5.3 Summary of Monitoring Exceedance
8 CONCLUSION AND RECOMMENDATIONS
Tables
Table I – Environmental Complaints Log
Table II – Status of Required Submission under Environmental Permit
Table 1.1 – Contact Information of Key Personnel
Table 1.2 – Environmental Licenses, Notification and Permits Summary
Table 2.1 – Construction Dust and Noise Monitoring Location
Table 2.3 – Construction Noise Monitoring Parameters, Frequency and Duration
Table 4.1 – Observations and Recommendation of Site Inspection in the Reporting Period
Table 5.1 – Environmental Complaints Log
Table 6.1 – Status of Required Submission under Environmental Permit
Figures
Figure 1 The Site Layout Plan of the Contract
Figure 2.1 The Location of the Construction Dust and Noise Monitoring Stations (Ho Man Tin)
Figure 2.2 The Location of the Construction Dust and Noise Monitoring Stations (Ma Tau Kok)
Figure 2.3 The Location of the Construction Dust and Noise Monitoring Stations (Yau Ma Tei)
Appendices
Appendix A Construction Programme
Appendix B Project Organization Chart
Appendix C Event and Action Plan
Appendix D Implementation Status of Environment Mitigation Measures (Construction Phase)
1.1.1 In order to meet the traffic demand and relieve traffic congestion on the existing east-west roads across Central Kowloon, Central Kowloon Route (CKR) (hereinafter referred to as “the Project”) is proposed which is a 4.7 km long dual 3-lane trunk road in Central Kowloon linking Yau Ma Tei Interchange in West Kowloon with the road network on Kai Tak Development and Kowloon Bay in East Kowloon.
1.1.2 The Central Kowloon Route – Design and Construction Environmental Impact Assessment Report (Register No.: AEIAR-171/2013) was approved with conditions by the Environmental Protection Department (EPD) on 11 July 2013. An Environmental Permit (EP-457/2013) was issued on 9 August 2013. A variation of EP (VEP-594/2021) was applied on 26 May 2021 and the latest EP (EP-457/2013/D) was issued by EPD on 15 June 2021.
1.1.3 Contract No. HY/2018/08 Central Kowloon Route – Central Tunnel (hereinafter referred to as “the Contract”), is one of the contracts of CKR which included the construction of the central tunnel, cut-and-cover tunnels at Yau Ma Tei and Ma Tau Kok and construction of piles and diaphragm walls for Ho Man Tin ventilation building.
1.1.4 Fugro Technical Services Limited (FTS) was appointed by Bouygues Travaux Publics (BTP) as the Environmental Team (ET) under the Contract no. HY/2018/08 to execute the environmental monitoring and audit (EM&A) programme under the issued EP (EP No.: EP-457/2013/D) and in accordance with the EM&A Manual.
1.1.5 This is the 53rd Monthly
EM&A Report prepared by FTS for the Contract No. HY/2018/08 Central Kowloon
Route – Central Tunnel. The Contract No. HY/2018/08 commenced on 19 September
2019. This report summarized the monitoring results and audits findings of the
EM&A programme under the issued EP (EP No.: EP-457/2013/D) and in
accordance with the EM&A Manual during the reporting period from 01/01/2024
to 31/01/2024.
1.2.1 The Project Organization structure is shown in Appendix B. The key personnel contact names and numbers are summarized in Table 1.1.
Table 1.1 Contact Information of Key Personnel
|
Party |
Position |
Name |
Telephone |
|
Highways Department (HyD) |
E13/CKR |
Mr. Joe Lam |
2762 3380 |
|
Arup-Mott MacDonald Joint Venture (AMMJV) |
Senior Resident Engineer |
Mr. Ben Poon |
3619 5967 |
|
ERM-Hong Kong, Limited (ERM) |
Independent Environmental Checker (IEC) |
Ms. Mandy To |
2271 3000 |
|
Bouygues Travaux Publics (BTP) |
Environmental Manager |
Mr. Simon Wong |
9281 4346 |
|
Fugro Technical Services Limited |
ET Leader |
Mr. Calvin Leung |
3565 4441 |
1.3 Construction Programme and Activities
1.3.1 The construction phase of this Contract under the EP commenced in October 2019. The site layout plan of the Contract is shown in Figure 1.
1.3.2 The construction programme of this Contract is shown in Appendix A.
1.4 Works undertaken during the month
1.4.1 The main construction works carried out in the reporting period were as follow:
· Underbreak scaling and smoothing works;
· Invert, lining and OHVD construction;
· CLP Room demolition and slope reinstatement.
Yau Ma Tei
· Underbreak scaling and smoothing works;
· Plant and material lifting;
· Invert, lining and OHVD construction;
· Mucking out from tunnel;
· Road slab and invert slab construction;
· Waterproofing work.
Ma Tau Kok
· Underbreak scaling and smoothing works;
· Plant and material lifting;
· Invert, lining and OHVD construction;
· Mucking out from tunnel;
· Road slab and invert slab construction;
· Waterproofing work;
· Cut and cover construction
Kai Tak Barging Point
· Material storage.
Sheung Lok Street
· Concreting.
Ma Hang Chung Road
· Concreting.
Note:
1 Construction Work at Ho Man Tin site surface was substantially completed. The site had been handed over to Contract No. HY/2019/13 on 30 December 2023.
1.5 Status of Environmental Licences, Notification and Permits
1.5.1 A summary of the relevant permits, licenses and/or notifications on environmental protection for this Contract is presented in Table 1.2.
Table 1.2 Environmental Licenses, Notification and Permits Summary
|
Reference No |
Valid From |
Valid Till |
|
|
Form NB |
448930, 448970, 448971 |
Mid-Sep 2019 |
NA |
|
Billing Account for Disposal of C&D waste |
Account no. 7034790 |
06 Aug 2019 |
NA |
|
Chemical Waste Producer Registration (Ho Man Tin Construction site) |
5111-236-B2557-02 |
25 Sep 2019 |
NA |
|
Chemical Waste Producer Registration (Yau Ma Tei Construction site) |
5213-225-B2557-05 |
19 Apr 2021 |
NA |
|
Chemical Waste Producer Registration (Ma Tau Kok Construction site) |
5213-247-B2557-06 |
19 Apr 2021 |
NA |
|
Construction Noise Permit |
|||
|
Construction Noise Permit (Ho Man Tin Construction site) |
GW-RE1416-23 |
14 Nov 2023 |
13 Jan 2024 |
|
Construction Noise Permit (Ho Man Tin Construction site)1 |
GW-RE0005-24 |
14 Jan 2024 |
13 Mar 2024 |
|
Construction Noise Permit (Yau Ma Tei Construction site) |
GW-RE1281-23 |
13 Oct 2023 |
12 Jan 2024 |
|
Construction Noise Permit (Yau Ma Tei Construction site)2 |
GW-RE0015-24 |
13 Jan 2023 |
12 Apr 2024 |
|
Construction Noise Permit (Yau Ma Tei Construction site) |
GW-RE1606-23 |
23 Dec 2023 |
22 Mar 2024 |
|
Construction Noise Permit (Ma Tau Kok Construction site) |
GW-RE1336-23 |
04 Nov 2023 |
03 Feb 2024 |
|
Construction Noise Permit (Ma Tau Kok Construction site) |
GW-RE1547-23 |
18 Dec 2023 |
17 Feb 2024 |
|
Construction Noise Permit (Kai Tak Barging Point) |
GW-RE0547-23 |
01 Jun 2023 |
30 Nov 2023 |
|
Construction Noise Permit (Kai Tak Barging Point) |
GW-RE1526-23 |
01 Dec 2023 |
29 Apr 2024 |
|
Construction Noise Permit (Sheung Lok Street) |
GW-RE1422-23 |
14 Nov 2023 |
13 Mar 2024 |
|
Water Discharge License |
|||
|
Water Discharge License
|
WT00034873-2019 (Ho Man Tin Construction site) |
22 Nov 2019 |
30 Nov 2024 |
|
WT00035436-2019 (Portion 18) |
02 Apr 2020 |
30 Apr 2025 |
|
|
WT00037723-2021 (Yau Ma Tei Construction site) |
07 Apr 2021 |
30 Apr 2026 |
|
|
WT00037883-2021 (Ma Tau Kok Construction site) |
30 Apr 2021 |
30 Apr 2026 |
|
|
WT00042304-2022 (Sheung Lok Street) |
13 Oct 2022 |
31 Oct 2027 |
|
|
WT10001427-20233 (Ma Hang Chung Road) |
4 Dec 2023 |
31 Dec 2028 |
|
Notes:
1 GW-RE1416-23 was superseded by GW-RE0005-24 since 14 January 2024.
2 GW-RE1281-23 was superseded by GW-RE0015-24 since 13 January 2024.
2 ENVIRONMENTAL MONITORING REQUIREMENTS
2.1 Construction Dust and Noise Monitoring Locations
2.1.1 Three construction dust monitoring locations and five construction noise monitoring locations pertinent to the Project have been identified based on the approved EM&A Manual for the Project. The locations of the construction dust and noise monitoring stations are summarized in Table 2.1 as displayed in Figures 2.1 - 2.3.
Table 2.1 Construction Dust and Noise Monitoring Locations
|
Dust Monitoring Station ID |
Noise Monitoring Station ID |
Monitoring Location |
|
M-A3 |
M-N3 |
SKH Tsoi Kung Po Secondary School |
|
/ |
E-N12a |
19 Hing Yan Street |
|
E-A14a |
E-N21a |
Block B of Merit Industrial Centre |
|
W-A6 |
/ |
Man Cheong building |
|
/ |
W-N18 |
Hydan Place |
|
/ |
W-N25A |
Prosperous Garden Block 1 |
Notes:
1. The dust and noise monitoring stations proposed in the EM&A Manual for M-A6/ M-N6 (i.e. Ko Fai House, Kwun Fai Court) was not available for impact dust and noise monitoring, therefore impact monitoring was conducted at M-A3/ M-N3 as an alternative which was agreed by the ER, IEC and EPD;
2. The noise monitoring station proposed in the EM&A Manual for E-N12 (i.e. Grand Waterfront Tower 3) was not available for impact dust and noise monitoring, therefore impact monitoring was conducted at E-N12a as an alternative which was agreed by the ER, IEC and EPD;
3. The dust and noise monitoring stations proposed in the EM&A Manual for E-A14 (i.e. Wyler Gardens) and E-N21 (i.e Hang Chien Court Block J) was not available for impact dust and noise monitoring, therefore impact monitoring was conducted at E-A14a/ E-N21a as an alternative which was agreed by the ER, IEC and EPD;
4. The dust monitoring stations proposed in the EM&A Manual for W-A5 (i.e. The Coronation) was not available for impact dust monitoring, therefore impact monitoring was conducted at W-A6 as an alternative which was agreed by the ER, IEC and EPD.
2.1.2 The last impact monitoring conducted by ET of Contract HY/2018/08 at M-A3/ M-N3 was on 27 December 2023. Impact monitoring at M-A3/ M-N3 was subsequently conducted by Environmental Team of Contract HY/2019/13 since January 2024 (Figure 2.1).
2.1.3 The construction dust and noise monitoring locations at M-A3 and M-N3 are covered by Contract No. HY/2019/13 Central Kowloon Route – Buildings, Electrical and Mechanical Works. The monitoring results at M-A3 and M-N3 are presented in the monthly EM&A Report prepared by Contract No. HY/2019/13.
2.1.4 The construction dust and noise monitoring locations at E-A14a, E-N12a and E-N21a are now covered by Contract No. HY/2014/07 Central Kowloon Route – Kai Tak West. The monitoring results at E-A14a, E-N12a and E-N21a in the reporting month are presented in the monthly EM&A Report prepared by Contract No. HY/2014/07.
2.1.5 The construction dust and noise monitoring locations at W-A6, W-N18 and W-N25A are now covered by Contract No. HY/2014/08 Central Kowloon Route –Yau Ma Tei East. The monitoring results at W-A6, W-N18 and W-N25A in the reporting month are presented in the monthly EM&A Report prepared by Contract No. HY/2014/08.
2.2 Construction Dust Monitoring
Monitoring Requirement
2.2.1 In accordance with the approved EM&A Manual, 1-hour and 24-hour Total Suspended Particulates (TSP) levels should be measured at the designated air quality monitoring stations to indicate the impacts of construction dust on air quality. Regular Impact 24-hour TSP monitoring should be carried out for at least once every 6 days, and 1-hour TSP monitoring should be done at least 3 times every 6 days when the highest dust impact occurs.
Monitoring Equipment
2.2.2 24-hour TSP air quality monitoring was performed using High Volume Sampler (HVS) deployed at the designated monitoring station. The HVS shall meet all the requirements of the EM&A Manual.
2.2.3 A portable direct reading dust meter was used to carry out the 1-hour TSP monitoring.
2.3 Construction Noise Monitoring
Monitoring Requirement
2.3.1 In accordance with the EM&A Manual, impact noise monitoring should be conducted at the designated noise monitoring stations for at least once a week during the construction phase of the Project. The parameters, frequency and duration of impact noise monitoring is summarized in Table 2.3.
Table 2.3 Construction Noise Monitoring Parameters, Frequency and Duration
|
Parameter |
Duration |
Frequency |
|
A-weighted equivalent continuous sound pressure level (Leq). L10 and L90 were also recorded |
30 minutes |
At least once per week |
Monitoring Equipment
2.3.2 Noise monitoring was performed using sound level meter at the designated monitoring station. The sound level meters deployed comply with the International Electrotechnical Commission Publications 651:1979 (Type 1) and 804:1985 (Type 1) specifications. Acoustic calibrator was deployed to check the sound level meters at a known sound pressure level.
2.4.1 As per the EM&A Manual, the landscape and visual mitigation measures shall be implemented and site inspections should be undertaken once every two weeks during the construction period. A summary of the implementation status is presented in Section 4.
3 ENVIRONMENTAL MONITORING RESULTS
3.1 Construction Dust Monitoring
3.1.1 The last impact monitoring conducted by ET of Contract HY/2018/08 was on 27 December 2023. Impact monitoring at M-A3 was subsequently conducted by Environmental Team of Contract HY/2019/13 since January 2024. The monitoring results at M-A3 and M-N3 are presented in the monthly EM&A Report prepared by Contract No. HY/2019/13.
3.1.2 No Action and Limit Level exceedance was recorded for construction dust monitoring in the reporting month.
3.2 Construction Noise Monitoring
3.2.1 The last impact monitoring conducted by ET of Contract HY/2018/08 was on 27 December 2023. Impact monitoring at M-N3 was subsequently conducted by Environmental Team of Contract HY/2019/13 since January 2024. The monitoring results at M-A3 and M-N3 are presented in the monthly EM&A Report prepared by Contract No. HY/2019/13.
3.2.2 One (1) Action Level exceedance was recorded for construction noise due to the noise-related complaints received in the reporting month. No Limit Level exceedance was recorded for construction noise monitoring in the reporting month.
3.3.1 Auditing of waste management practices during regular site inspections confirmed that the waste generated during construction were properly, stored, handled and disposed of in general. The Contractor was responsible for the implementation of any mitigation measures to reduce waste or redress issues arising from the waste materials.
3.3.2 The implemented environmental mitigation measures for the waste management in the reporting period are summarized in Appendix D. The summary of observations and recommendations made for waste management during the site inspections are presented in Table 4.1.
3.3.3 Monthly summary of waste flow table is detailed in Appendix F.
3.4.1 Bi-weekly inspections of the implementation of landscape and visual mitigation measures were conducted on 2 and 16 January 2024. The implementation the landscape and visual mitigation measures in the reporting period are summarized in Appendix D. The summary of observations and recommendations made for landscape and visual mitigation measures during the site inspections are presented in Table 4.1.
3.4.2 The Event and Action Plan for landscape and visual during construction phase is given in Appendix C.
4 ENVIRONMENTAL SITE INSPECTION AND AUDIT
4.1.1 Site inspections were carried out on a weekly basis to monitor the implementation of proper environmental pollution control and mitigation measures for the Project. A summary of the mitigation measures implementation status is provided in Appendix D.
4.1.2 In the reporting month, five site inspections were carried out on 2, 9 (with IEC), 16, 23 and 30 January 2024. Details of observations recorded during the site inspections are presented in Table 4.1.
Table 4.1 Observations and Recommendation of Site Inspection in the Reporting Period
|
Environmental Aspect |
Date |
Observations and Recommendations |
Follow-up Actions |
|
Air Quality |
Nil |
Nil |
Nil |
|
Nil |
Nil |
Nil |
|
|
Noise |
Nil |
Nil |
Nil |
|
Water Quality |
Nil |
Nil |
Nil |
|
Waste Management |
2 Jan 2024 |
The Contractor was reminded to regularly clear up the construction waste to prevent accumulation. |
Construction waste was removed from construction site. |
|
Landscape and Visual |
Nil |
Nil |
Nil |
|
Permit/ Licenses |
Nil |
Nil |
Nil |
5 ENVIRONMENTAL COMPLAINT AND NON-COMPLIANCE
5.1 Complaint Handling, Prosecution and Public Engagement
5.1.1 All complaints received in the last reporting month were finalized.
5.1.2 One (1) noise quality-related complaint (i.e. 3rd January 2024) and one (1) waste management-related complaint (i.e. 15th January 2024) was received in the reporting month.
5.1.3 The complaint cases in January 2024 are summarized in Table 5.1.
Table 5.1 Environmental Complaints Log
|
Complaint Log No. |
Date of Complaint |
Received From |
Nature of Complaint |
Status |
|
EC181_CKRCT20231204_755 |
4th December 2023 |
1823 |
Blocked gullies |
Investigation report was finalized on 1st February 2024. |
|
EC182_CKRCT20240103_759 |
3rd January 2024 |
1823 |
Daytime Noise |
Investigation report was finalized on 1st February 2024. |
|
EC183_CKRCT20240115_763 |
15th January 2024 |
1823 |
Concrete spillage |
Investigation report was finalized on 1st February 2024. |
5.1.4 Cumulative complaint log, summaries of complaints, notification of summons and successful prosecutions are presented in Appendix E.
5.1.5 No public engagement activities were conducted in the reporting period.
5.2 Summary of Environmental Non-Compliance
5.2.1 A waste management related observation was recorded during the site inspection on 2nd Jan 2024. The observation was rectified by Contractor on 5th Jan 2024.
5.3 Summary of Monitoring Exceedance
5.3.1 The last impact monitoring conducted by ET of Contract HY/2018/08 at M-A3/ M-N3 was on 27 December 2023. Impact monitoring at M-A3/ M-N3 was subsequently conducted by Environmental Team of Contract HY/2019/13 since January 2024. The monitoring results at M-A3 and M-N3 are presented in the monthly EM&A Report prepared by Contract No. HY/2019/13.
5.3.2 No Action and Limit Level exceedance was recorded for construction dust monitoring in the reporting month.
5.3.3 One (1) Action Level exceedance was recorded for construction noise due to the noise-related complaints received in the reporting month. No Limit Level exceedance was recorded for construction noise monitoring in the reporting month.
6 IMPLEMENTATION STATUS OF ENVIRONMENTAL MITIGATION MEASURE
6.1.1 The Contractor had implemented environmental mitigation measures and requirements as stated in the EIA Report, the EP and EM&A Manual. The implementation status of the environmental mitigation measures during the reporting period is summarized in Appendix D. Status of required submissions under the EP during the reporting period is summarised in Table 6.1.
Table 6.1 Status of Required Submission under Environmental Permit
|
EP Condition |
Submission |
Submission Date |
|
3.4 |
Monthly EM&A Report (December 2023) |
11 January 2024 |
7.1.1 The main works will be anticipated in the next reporting period are as follow:
Ho Man Tin1
· Underbreak scaling and smoothing works;
· Invert, lining and OHVD construction;
· Road improvement and re-surfacing work.
Yau Ma Tei
· Underbreak scaling and smoothing works;
· Plant and material lifting;
· Invert, lining and OHVD construction;
· Mucking out from tunnel;
· Road slab and invert slab construction;
· Waterproofing work;
· Extension of Noise Enclosure.
Ma Tau Kok
· Underbreak scaling and smoothing works;
· Plant and material lifting;
· Invert, lining and OHVD construction;
· Mucking out from tunnel;
· Road slab and invert slab construction;
· Waterproofing work;
· Cut and cover construction
Kai Tak Barging Point
· Material storage.
Sheung Lok Street
· Concreting.
Ma Hang Chung Road
· Concreting.
Note:
1 Construction Work at Ho Man Tin site surface was substantially completed. The site had been handed over to Contract No. HY/2019/13 on 30 December 2023.
7.1.2 The recommended mitigation measures corresponding to the main works in the next reporting period are listed as follows:
· Good relationship shall be maintained with the nearby sensitive receivers/ stakeholders which may be affected by the construction works such as providing better/ more detail information of the work nature and inform in advance of the works to the nearby residents;
· Any excavated, stockpile of dusty material or load of dusty materials on a vehicle leaving a construction site should be covered entirely by impervious sheeting;
· All construction plants / machineries should be checked / serviced on a regular basis during the courses of construction to minimize the emission of noise generation and eliminate dark smoke emission;
· All C&D materials generated should be transported and stored at temporary storage area. Suitable materials should be sorted for reuse on-site;
· Every vehicle shall be cleaned thorough at the designated wheel washing area onsite;
· Wastewater generated from drilling shall be properly collected for reuse or treated by wastewater treatment facilities before discharge;
· Provision of drip trays for equipment likely cause spillage of chemical / fuel, and provide routine maintenance;
· Erecting temporary noise barrier for noisy Powered Mechanical Equipment (PME) and deployment of Quality Powered Mechanical Equipment (QPME) as many as practicable;
· Conditions in the Environmental Permit and License should be followed;
· All recommended mitigation measures specified in the approved EIA Report and EM&A Manual shall be implemented.
· All vehicles should be cleaned before leaving the construction site to ensure no muddy deposited by them on roads.
8 CONCLUSION AND RECOMMENDATIONS
8.1.1 The 53rd Monthly EM&A Report for the Contract No. HY/2018/08 Central Kowloon Route – Central Tunnel summarized the monitoring results and audits findings of the EM&A programme under the issued EP (EP No.: EP-457/2013/D) and in accordance with the EM&A Manual during the reporting period from 01/01/2024 to 31/01/2024.
8.1.2 No construction noise monitoring was conducted in the reporting month as the site had been handed over to Contract No. HY/2019/13 on 30 December 2023. Impact monitoring at M-A3/ M-N3 has been conducted by Environmental Team (HY/2019/13) since January 2024.
8.1.3 One (1) Action Level exceedance was recorded for construction noise due to the noise-related complaints received in the reporting month. No Limit Level exceedance was recorded for construction noise monitoring in the reporting month. No Action and Limit Level exceedance was recorded for construction dust monitoring in the reporting month.
8.1.4 Weekly environmental site inspections were conducted during the reporting period. In general, the Contractor had implemented environmental mitigation measures and requirements as stated in the EIA Report, the EP and EM&A Manual.
8.1.5 All complaints received in the last reporting month were finalized.
8.1.6 One (1) noise-related complaint (i.e. 3rd January 2024) and one (1) waste management-related complaint (i.e. 15th January 2024) was received in the reporting month. Both complaints were finalized and settled.
8.1.7 No environmental related prosecutions or notification of summons were received in the reporting period.
8.1.8 A waste management related observation was recorded during the site inspection on 2nd Jan 2024. The observation was rectified by Contractor on 5th Jan 2024.
8.1.9 According to the environmental site inspections performed in the reporting month, the following recommendations were provided:
Air Quality Impact
· No specific observation was identified in the reporting month.
Construction Noise Impact
· No specific observation was identified in the reporting month.
Water Quality Impact
· No specific observation was identified in the reporting month.
Waste Management
· No specific observation was identified in the reporting month.
Landscape and Visual Impact
· No specific observation was identified in the reporting month.
Permit/ Licenses
· No specific observation was identified in the reporting month.
